TRANSPARENT CPP FILMS

TRANSPARENT CPP FILMS DESCRIPTION

GC-CPL is co-Extruded transparent films with one side corona treated and other side sealable.

TRANSPARENT CPP FILMS APPLICATIONS

Bread Packaging
Flower Packaging
Noodles Packaging
Shampoo Packaging
Pasta Packaging
Dry Fruits Packaging
Snacks Foods
General Food Pack
Easy Peel

TRANSPARENT CPP FILMS PRODUCT FEATURES

Transparent, hygienic, dust free & non toxic
Good Optics
Consistent Slip
Good Machinability
Good hot tack
Good seal lintegrity

TRANSPARENT CPP FILMS TECHNICAL SPECIFICATIONS

Properties		Test Method	Unit	Typical Value
Properties		Test Method	Unit	18	20	25	30	38	40	50	80
Thickness	± 5%	D-374	Micron	18	20	25	30	38	40	50	80
Film Density		D-1505	gm/cc	0.90	0.90	0.90	0.90	0.90	0.90	0.90	0.90
Grammage		D-2673	Gms/sq.mtr	16.38	18.2	22.75	27.3	34.58	36.4	45.5	72.8
Yeild		D-4321	gm/m2	61.05	54.95	43.96	36.63	28.91	27.47	21.98	13.73
			m2/kg	43012	38714	30971	25807	20368	19354	15486	9673
Treatment Level		D-2578	dyne/cm	38	38	38	38	38	38	38	38
Dynamic		D-1894	N/A	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25
Haze		D-1003	%	3.5	3.8	4.0	4.2	4.5	5.0	5.5	7.0
Gloss		D-2457	Unit	80	80	80	75	70	70	70	70
	MD*			500	500	500	500	500	500	500	500
Tensile StrengthAt Break	TD*	D-882	kg/cm2	210	210	210	200	200	200	200	190
	MD*			7100	7100	7100	7100	7100	7100	7100	7100
	TD*		(psi)	3000	3000	3000	2800	2800	2800	2800	2700
Elongation At Break	MD	D-882		450	450	450	450	450	450	450	450
	TD		%	600	600	600	600	600	600	600	600
Heat Seal Initiation Temprature		F-88	±2 °C	118	118	118	120	120	120	122	122
Heat Seal Strength (At 130°C)			gm/25mm	1500	1500	1800	2000	2000	2000	2200	2500
W.V.T.R (38°C & 90% RH)		F-1249	gm/m2/day	14	13	12	10	9	9	8	7
			gm/100in2/day	0.9	0.8	0.7	0.6	0.6	0.6	0.5	0.4
O.T.R (23°C & 0% RH)			cc/m2/day	3750	3700	3650	3600	3550	3550	3500	3000
		D-3985	(cc/100in2/day)	242	238	235	232	229	229	225	193

*MD = MACHINE DIRECTION
*TD = TRANSVERSE DIRECTION

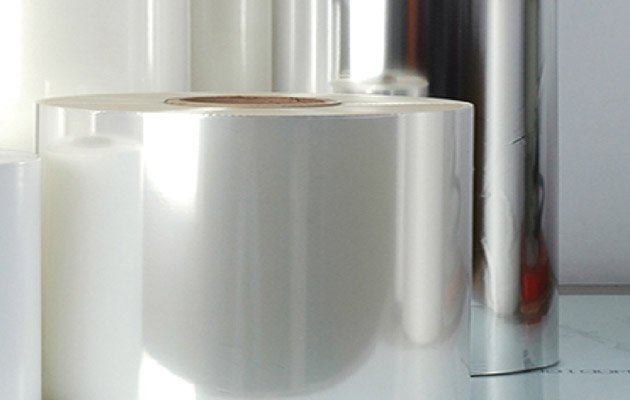

METALIZED CPP FILMS

METALIZED CPP FILMS DESCRIPTION

GC-CPM is co-Extruded transparent for Metallization. It is one side corona treated and other side sealable. To be metalized on corona side.

METALIZED CPP FILMS APPLICATIONS

Namkeen metallization
Fryums, Farsan, Candy, Twist

METALIZED CPP FILMS PRODUCT FEATURES

Excellent Machinability
Excellent Sealing Strengh
Superior metal anchorage

METALIZED CPP FILMS TECHNICAL SPECIFICATIONS

Properties		Test Method	Unit	Typical Value
Properties		Test Method	Unit	20	22	25	30	35
Thickness	± 5%	Internal	Micron	20	22	25	30	35
		D-1505	Gauge	80	88	100	27.3	140
Film Density		Internal	gm/cc	0.91	0.91	0.91	0.91	0.91
Grammage		Internal	gm/m2	18.2	20.02	22.75	27.3	31.85
Yield			Sq.mtr/kg	54.95	49.95	43.95	36.63	31.39
		D-2578	in2/lb	38714	35192	30971	25807	22122
Treatment Level		D-1003	Dyne/cm	38	38	38	38	38
Haze		D-2457	%	4	4	4	4.2	5
Gloss			Unit	80	80	80	75	70
Tensile Strength at Break	MD*	D-882		530	530	530	530	530
	TD*		kg/cm2	240	240	240	200	240
	MD*			7500	7500	7500	7500	7500
	TD*		(psi)	3400	3400	3400	3400	3400
Elongation at Break	MD	D-882		450	450	450	450	450
	TD	Internal	%	600	600	600	600	600
Heat Seal Initiation Temprature			°C	120	120	120	120	120
Heat Seal Strength (At 130°C)		F-1249	gm/25mm	1700	1800	2000	2000	2300
W.V.T.R (38°C & 90% RH)			gm/m2/day	14	14	12	10	10
		D-3985	gm/100in2/day	0.9	0.9	0.8	0.6	0.6
O.T.R (23°C & 0% RH)			cc/m2/day	3700	3600	3600	3600	3550
			(cc/100in2/day)	241	235	235	231	231

*MD = MACHINE DIRECTION
*TD = TRANSVERSE DIRECTION

WHITE OPAQUE CPP FILMS

WHITE OPAQUE CPP FILMS DESCRIPTION

GC-CWL is CO-Extruded white opaque ﬁlm with one side corona treated and other side sealable.

WHITE OPAQUE CPP FILMS APPLICATIONS

Biscuit
Peelo
Pouch
Cadbury
Ice Candy

WHITE OPAQUE CPP FILMS PRODUCT FEATURES

Excellent Gloss & Improved Opacity
Consistent Slip
Good Machinability
Excellent Sealing Integrity
Whiteness eliminates the need for white ink
Excellent hot tack

WHITE OPAQUE CPP FILMS TECHNICAL SPECIFICATIONS

Properties		Test Method	Unit	Typical Value
Properties		Test Method	Unit	18	20	22	25	30	35	40
Thickness	± 5%	D-374	Micron	18	20	22	25	30	35	40
Film Density		D-1505	gm/cc	0.95	0.95	0.95	0.95	0.95	0.95	0.95
Grammage		D-2673	gms/sq.mtr	17.1	19	20.9	23.75	28.5	33.25	38
Yield		D-4321	gm/m² m²/kg	58.48	52.63	47.85	42.1	35.08	30.07	26.31
				38383	37080	33712	29661	24715	21185	18536
Treatment Level		D-2578	dyne/cm	38	38	38	38	38	38	38
Coefe of Friction	Dynamic	D-1894	–	0.25	0.25	0.25	0.25	0.25	0.25	0.25
Transmittance		D-1003	%	45	42	42	40	38	38	35.0
Gloss		D-2457	Unit	50	50	50	50	50	50	50
	MD*			460	460	460	460	460	460	460
Tensile Strength At Break	TD*	D-882	kg/cm2	200	200	200	200	200	200	200
	MD*		(psi)	6500	6500	6500	6500	6500	6500	6500
	TD*			2850	2850	2850	2850	2850	2850	2850
Elongation At Break	MD	D-882	%	400	400	400	400	400	400	400
	TD			600	600	600	600	600	600	600
Heat Seal Initiation Temprature			±2°C	118	118	118	120	120	120	120
Heat Seal Strength (At 130 °C)		F-88	gm/25mm	1500	1500	1500	1500	1500	1500	1500
W.V.T.R (38 °C & 90% RH)		F-1249	gm/m2/day	13	13	12	12	10	10	9
			(gm/100in2/day)	0.8	0.8	0.7	0.7	0.6	0.6	0.6
O.T.R (23℃ & 0% RH)		D-3985	cc/m2/day	3750	3700	3650	3650	3600	3600	3550
			(cc/100in2/day)	242	239	235	235	232	232	229

*MD = MACHINE DIRECTION
*TD = TRANSVERSE DIRECTION

BREAD OVER WRAP CPP FILMS

BREAD OVER WRAP CPP FILMS DESCRIPTION

GC-CPBR is CO-Extruded transparent CPP ﬁlms one side corona treated and both side heat sealable

BREAD OVER WRAP CPP FILMS APPLICATIONS

Bread

BREAD OVER WRAP CPP FILMS PRODUCT FEATURES

Good optical properties
Low slip for high speed packaging
Excellent machinability
Excellent hot tack

BREAD OVER WRAP CPP FILMS TECHNICAL SPECIFICATIONS

Properties		Test Method	Unit	Typical Value
Properties		Test Method	Unit	18	20	25	30	38	40	50	80
Thickness	± 5%	D-374	Micron	18	20	25	30	38	40	50	80
Film Density		D-1505	gm/cc	0.90	0.90	0.90	0.90	0.90	0.90	0.90	0.90
Grammage		D-2673	Gms/sq.mtr	16.38	18.2	22.75	27.3	34.58	36.4	45.5	72.8
Yield		D-4321	gm/m2	61.05	54.95	43.96	36.63	28.91	27.47	21.98	13.73
			m2/kg	43012	38714	30971	25807	20368	19354	15486	9673
Treatment Level		D-2578	dyne/cm	38	38	38	38	38	38	38	38
Dynamic		D-1894	N/A	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25
Haze		D-1003	%	3.5	3.8	4.0	4.2	4.5	5.0	5.5	7.0
Gloss		D-2457	Unit	80	80	80	75	70	70	70	70
	MD*			500	500	500	500	500	500	500	500
Tensile Strength At Break	TD*	D-882	kg/cm2	210	210	210	200	200	200	200	190
	MD*			7100	7100	7100	7100	7100	7100	7100	7100
	TD*		(psi)	3000	3000	3000	2800	2800	2800	2800	2700
Elongation At Break	MD	D-882		450	450	450	450	450	450	450	450
	TD		%	600	600	600	600	600	600	600	600
Heat Seal Initiation Temprature		F-88	±2°C	118	118	118	120	120	120	122	122
Heat Seal Strength (At 130℃)			gm/25mm	1500	1500	1800	2000	2000	2000	2200	2500
W.V.T.R (38°C & 90% RH)		F-1249	gm/m2/day	14	13	12	10	9	9	8	7
			(gm/100in2/day)	0.9	0.8	0.7	0.6	0.6	0.6	0.5	0.4
O.T.R (23°C & 0% RH)			cc/m2/day	3750	3700	3650	3600	3550	3550	3500	3000
		D-3985	(cc/100in2/day)	242	238	235	232	229	229	225	193

*MD = MACHINE DIRECTION
*TD = TRANSVERSE DIRECTION

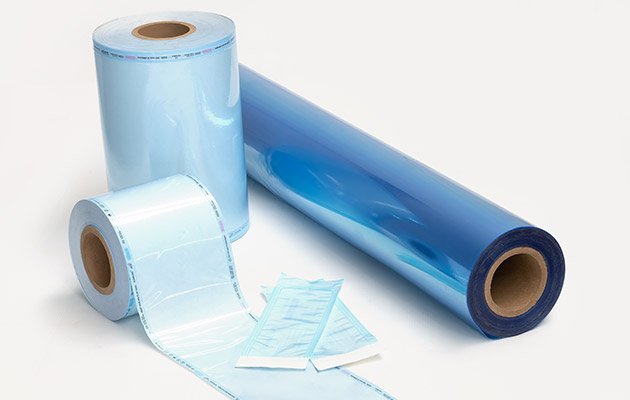

MEDICAL GRADE CPP FILMS

MEDICAL GRADE CPP FILMS DESCRIPTION

We are known as leading Manufacturer & Supplier of Medical Grade CPP Film

MEDICAL GRADE CPP FILMS APPLICATIONS

Syringe Packaging
Operation Blade Packaging

MEDICAL GRADE CPP FILMS PRODUCT FEATURES

Excellent Sterilization Performance
Good Optics
Good Machinability
Good Seal Integrity

MEDICAL GRADE CPP FILMS TECHNICAL SPECIFICATIONS

Properties		Test Method	Unit	Typical Value
Properties		Test Method	Unit	18	20	25	30	38	40	50	80
Thickness	± 5%	D-374	Micron	18	20	25	30	38	40	50	80
Film Density		D-1505	gm/cc	0.90	0.90	0.90	0.90	0.90	0.90	0.90	0.90
Grammage		D-2673	Gms/sq.mtr	16.38	18.2	22.75	27.3	34.58	36.4	45.5	72.8
Yeild		D-4321	gm/m2	61.05	54.95	43.96	36.63	28.91	27.47	21.98	13.73
			m2/kg	43012	38714	30971	25807	20368	19354	15486	9673
Treatment Level		D-2578	dyne/cm	38	38	38	38	38	38	38	38
Dynamic		D-1894	N/A	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25
Haze		D-1003	%	3.5	3.8	4.0	4.2	4.5	5.0	5.5	7.0
Gloss		D-2457	Unit	80	80	80	75	70	70	70	70
	MD*			500	500	500	500	500	500	500	500
Tensile StrengthAt Break	TD*	D-882	kg/cm2	210	210	210	200	200	200	200	190
	MD*			7100	7100	7100	7100	7100	7100	7100	7100
	TD*		(psi)	3000	3000	3000	2800	2800	2800	2800	2700
Elongation At Break	MD	D-882		450	450	450	450	450	450	450	450
	TD		%	600	600	600	600	600	600	600	600
Heat Seal Initiation Temprature		F-88	±2 °C	118	118	118	120	120	120	122	122
Heat Seal Strength (At 130°C)			gm/25mm	1500	1500	1800	2000	2000	2000	2200	2500
W.V.T.R (38°C & 90% RH)		F-1249	gm/m2/day	14	13	12	10	9	9	8	7
			gm/100in2/day	0.9	0.8	0.7	0.6	0.6	0.6	0.5	0.4
O.T.R (23°C & 0% RH)			cc/m2/day	3750	3700	3650	3600	3550	3550	3500	3000
		D-3985	(cc/100in2/day)	242	238	235	232	229	229	225	193

*MD = MACHINE DIRECTION
*TD = TRANSVERSE DIRECTION
